RayTools Ceramic Ring for Fiber Laser Cutting Heads Nozzle Holder
RayTools Ceramic Ring for Fiber Laser Cutting Heads Nozzle Holder - RayTools 陶瓷环(D28 M11) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Description
Description
RayTools provides high-quality, original ceramic components for fiber laser cutting heads, designed for precision and durability in high-performance environments. These components are compatible with a wide range of RayTools laser cutting heads and are essential for maintaining optimal performance.
Specifications:
Brand: RayTools
Material: High-grade ceramic for durability and thermal stability
Application: Compatible with RayTools and related cutting heads
Variants

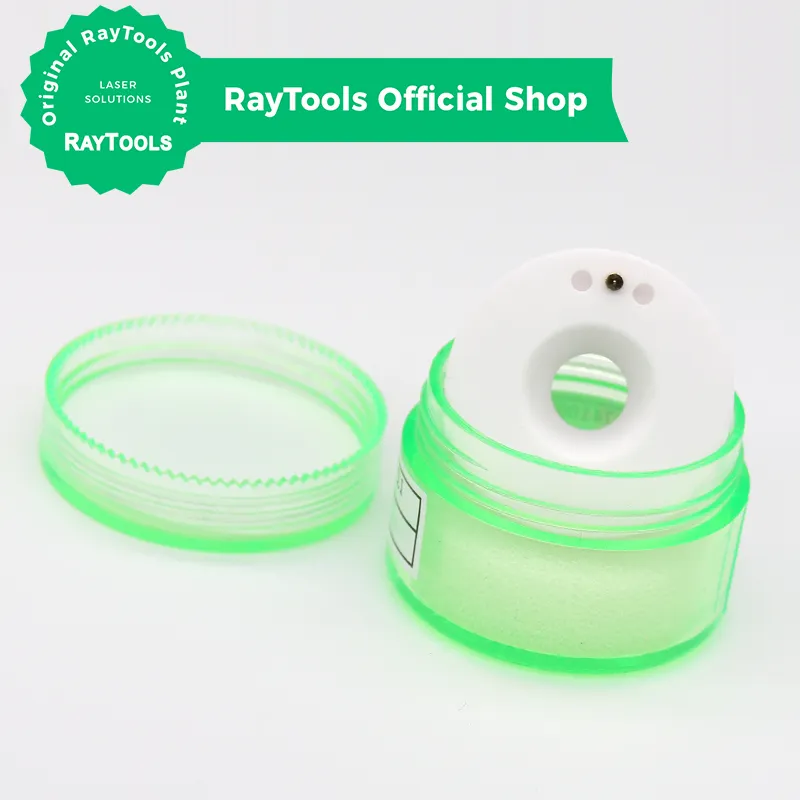

RayTools Ceramic Ring(D28 M11)
SKU: A02990025
Outer Diameter: 32mm
Inner Diameter: 28.5mm
Height: 12mm
Thread: M14
Compatible Cutting Heads: RayTools BT240, BMH109, BMH110, BMH111, BMH114

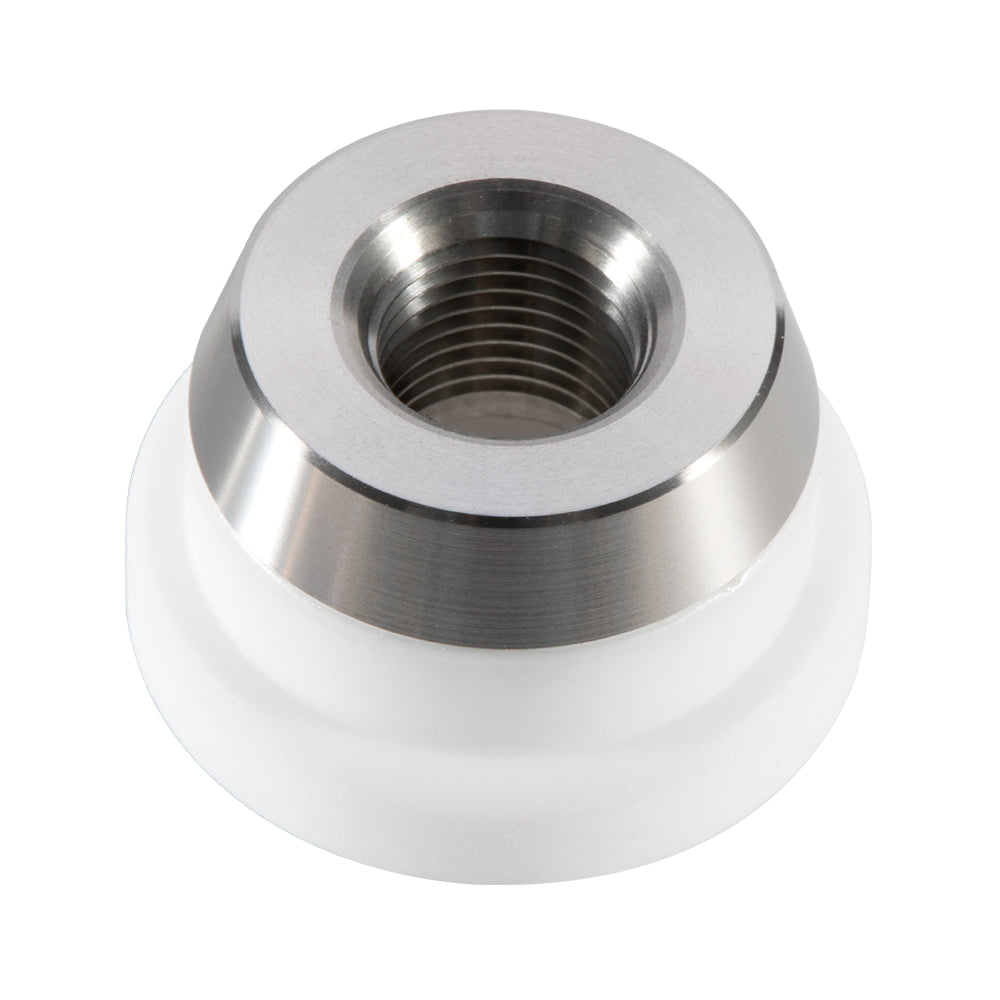

RayTools 3D Ceramic Body(D19.5)
SKU: A06050508
Outer Diameter: 19.5mm
Inner Diameter: 16mm
Height: 12.4mm
Thread: M8
Compatible Cutting Heads: RayTools BT240, BMH109, BMH110, BMH111, BMH114, GF101

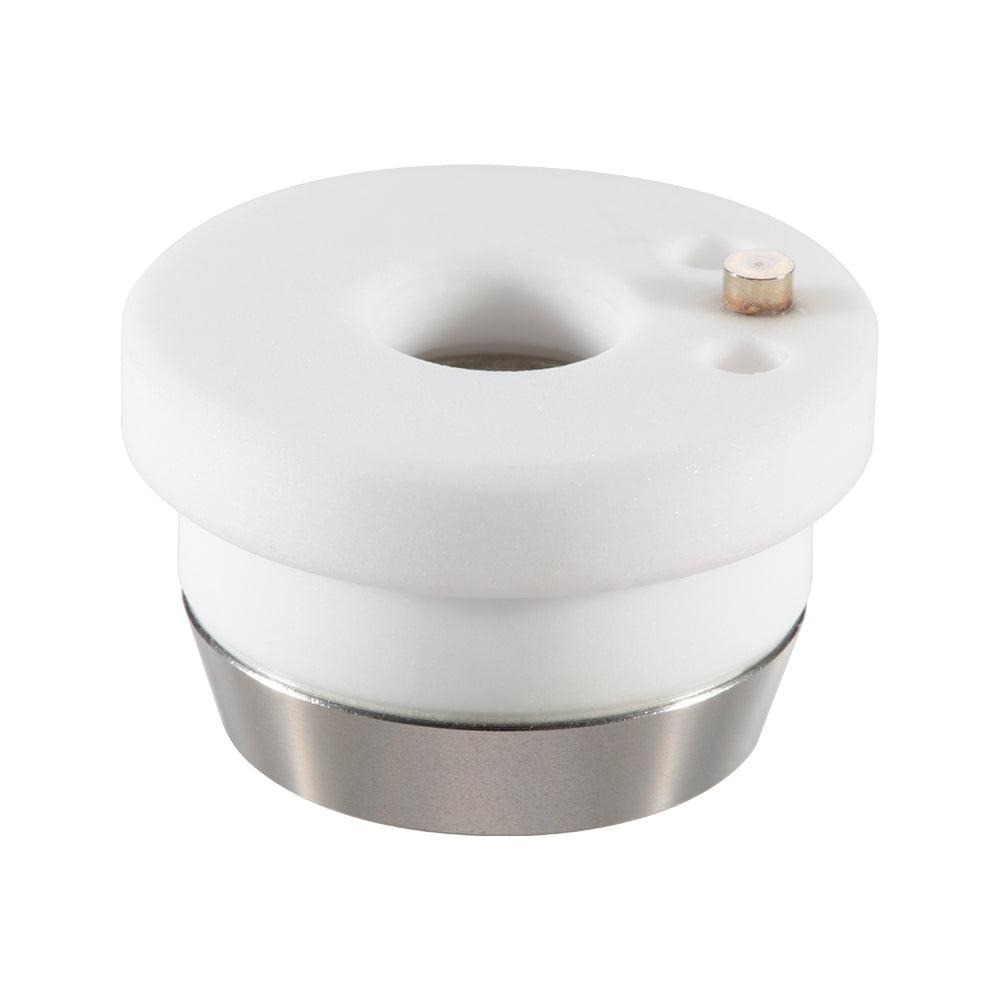

RayTools Ceramic Body (D21.4 M8)
SKU: A06050653
Outer Diameter: 21.4mm
Inner Diameter: 18mm
Height: 12.9mm
Thread: M8
Compatible Cutting Heads: RayTools BT220, BD04K, BD08K

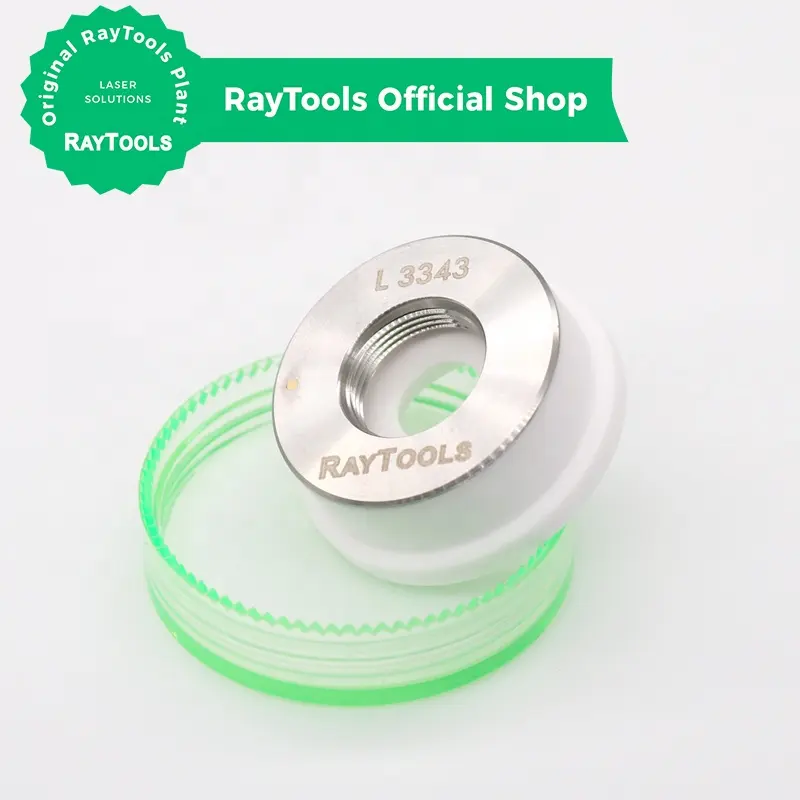

RayTools Ceramic Body (D32 M14）
SKU: A09010605
Outer Diameter: 28mm
Inner Diameter: 24.5mm
Height: 11.7mm
Thread: M11
Compatible Cutting Heads: RayTools BM110, BM114, BM115, BM04K, BM06K, BS06K
