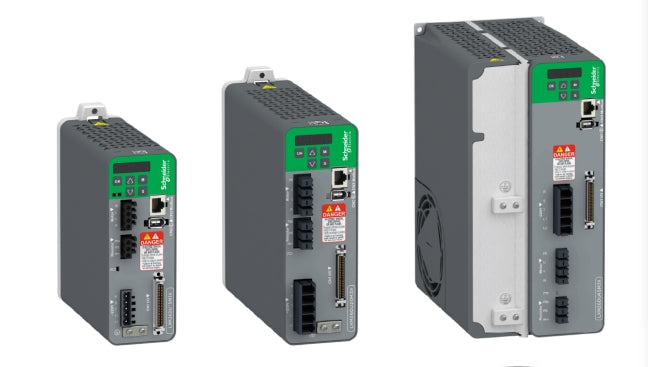

Schneide servo driver

Main Functions of Servo Drive

1. Automatic Motor Identification by Servo Drive: Transfers motor-related technical data from the motor to the drive through the encoder connection cable.

2. Filtering: Anti-vibration function that suppresses resonance frequencies within the transmission system connected to moving application parts.

3. Monitoring:

   - Status Monitoring and I/O Monitoring

   - Logging Function to record alerts and alarms (stored internally in the drive).

   - Reset Function for alert and alarm information.

   - Monitors drive variables related to motor control and closed-loop control.

4. Motion Control via Digital Input Interface of the Servo Drive:

5. Relative or absolute positioning mode, speed mode, torque control mode, position sequence mode: Supports up to 32 motion sequences, all controlled via the digital input interface.

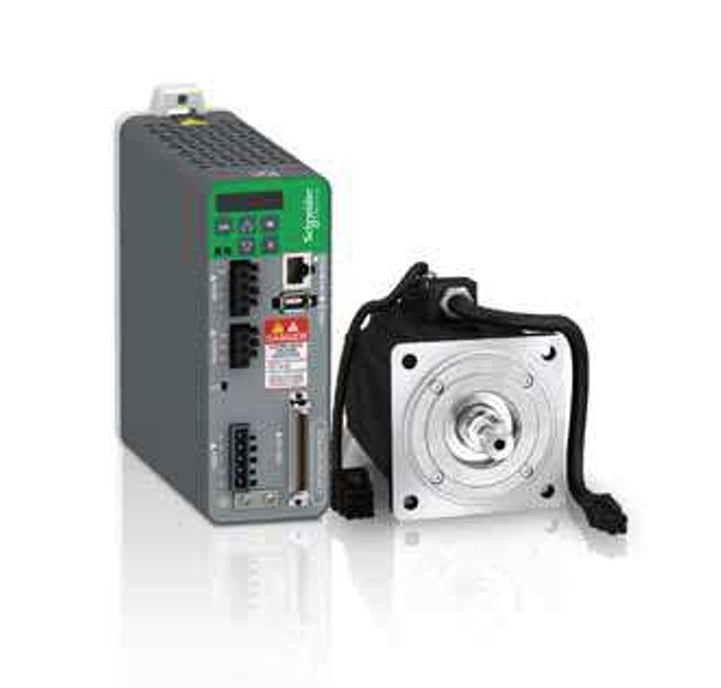

Advantages

- Customizable as Needed: Equipped with mainstream servo functions; 2000 Hz speed loop response.

- Easy to Use: Convenient model selection, effortless installation; self-tuning functionality for intelligent adjustments; 32 motion control groups for precise positioning.

• International Quality: Drive circuit boards with protective coating; motor shaft oil seal, IP65 protection rating; motor operating temperature from -20℃ to 40℃.

  Here's a professional translation of the product description:

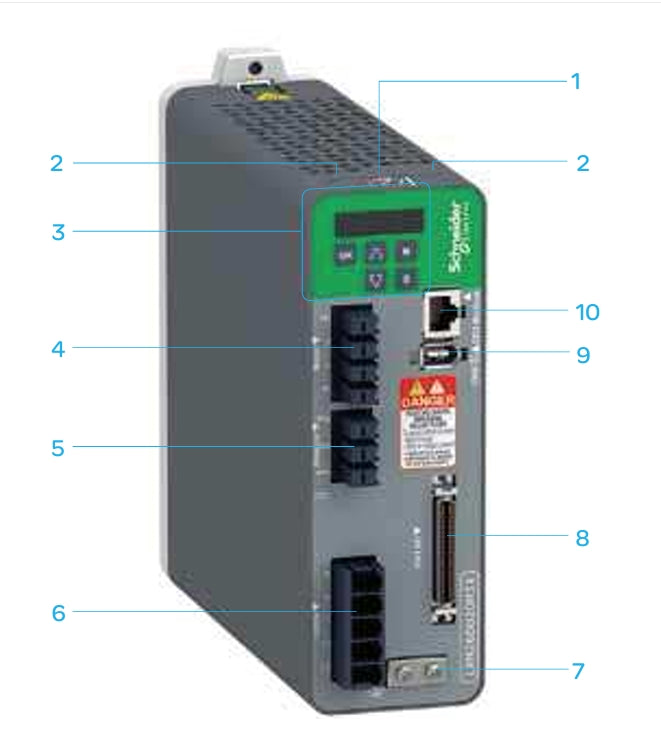

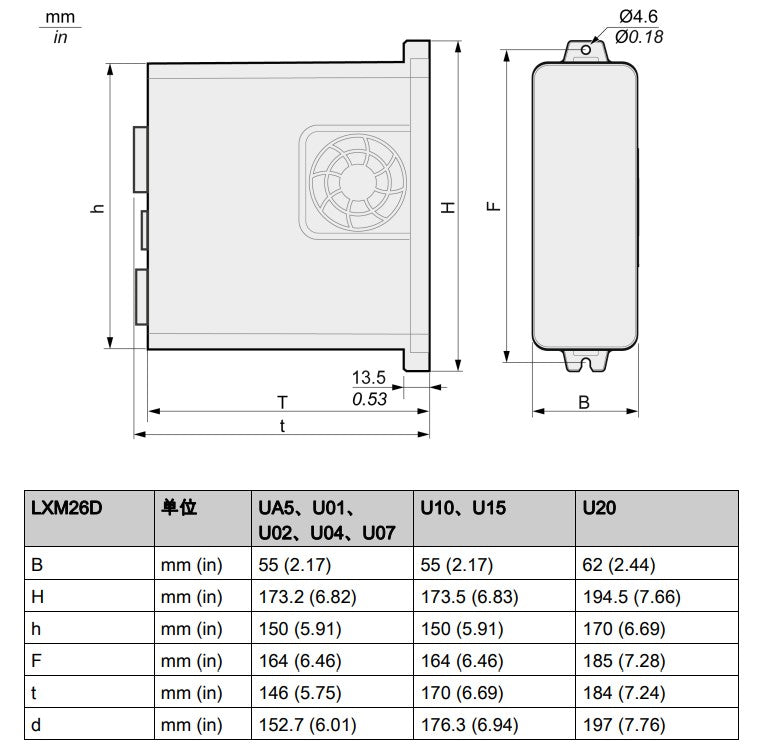

  Top of the Driver:

  1. 2D barcode for access to detailed technical parameters, wiring guide, and installation instructions.

  2. Nameplate slot for application identification.

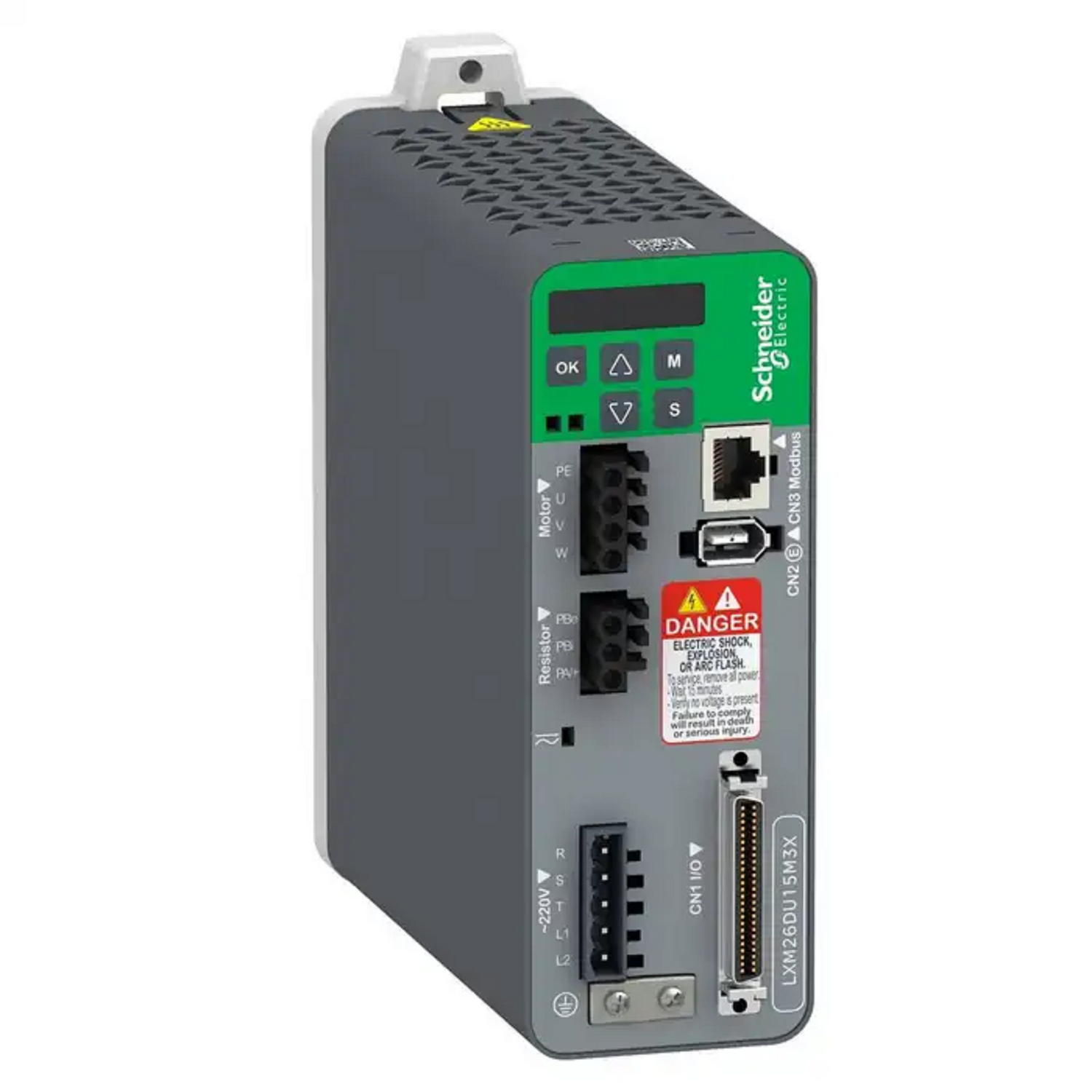

  Front of the Driver:

  3. HMI interface with 7-segment display, 5 buttons (Confirm, Mode, Setting, Increase, Decrease), and LED status indicator for the servo driver.

  4. Detachable terminal block (1), with 4 terminals (PE, U, V, W) for motor connection (labeled as Motor).

  5. Detachable terminal block (1), with 3 terminals (PBe, PBi, PA/+) for connecting the brake resistor (labeled as Resistor).

  6. Detachable terminal block (1), with 5 terminals (R, S, T, L1, L2) for connecting a 220V AC power supply (labeled as -220V).

  7. Protective grounding terminal.

  8. Input/Output interface connector (labeled as CN11/O).

  9. Motor encoder connector: 20-bit single-turn absolute encoder (labeled as CN2).

  10. RJ45 connector for Modbus serial communication (labeled as CNEModbus).
